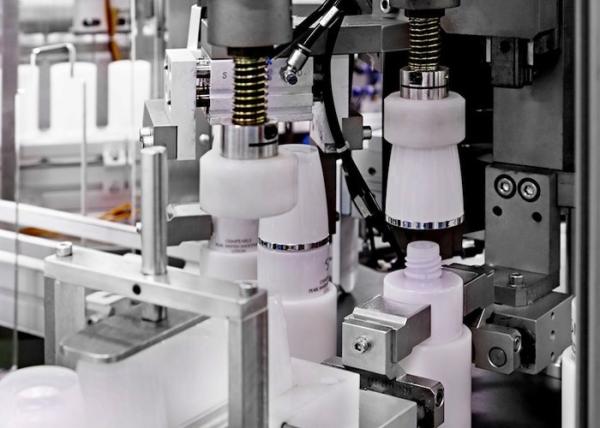

Intermittent Mode Bottle Filling Capping Machine For Lotion Liquid High Accuracy

Automatic Filling And Capping Line Introduction:

Because the oval bottles have larger surface that can be used on product feature demonstration, also, its lively shape makes it popular and becomes common packaging choice.

Automatic Filling Capping machine is designed for oval bottles which easy to overturn while conveying, providing stable and balanced transportation for many sizes/ heights of bottle.

The filling station has multiple filling nozzles and dual-track conveying which are designed for maintaining the continuous production and increasing the efficiency, also, the distance between two bottles are remained properly so that there is no interference in liquid filling procedure.

Automatic Filling And Capping Line Working Process:
Bottle loading (manual or picking by machine)→Air cleaning 6-position bottles by rotation → 6-position automatic filling (mechanical cam linkage control)→Wipper sort and place→ cap sort, place and pre-screw→ Cap tighten→ Reject defective products→ Depucking→ Inkjet coding and inspection→ Product transmit to next station

Automatic Filling And Capping Line Features:

· Automatic filling and capping line is built with high quality whatever in material and assembly and tested before shipping.

· All the parts contact with products are made of high quality polished SS316.

· Conform with Pharmaceutical GMP Standard.

· Siemens PLC and HMI Screen for easy operation, flexible software/hardware application.

· Piston pump for easily control the product filling amount.

· Filling accuracy : < ±0.5 % of volume.

· Special Patent Design cap screwing by servo technology.

· Special Patent wiper loading, cap loading system.

· Output: up to 3,600pcs/hour.

· The automatic liquid/skin care emulsion line is a circular design of conveyor line. By use this with flexible equipment more manual intervention stations are reserved to meet the production demand of special products.

· The Automatic line is designed for using puck-in-puck so that the one inside can meet different size and shape which saving the size change cost. However, this kind of puck can provide the best protection for product appearance.

Automatic Filling And Capping Line​ Applications

Automatic Filling And Capping Line Details:

Automatic Filling And Capping Line Advantages:

1. The circulation design for this automatic line improve the flexibility. Reserved manual intervention stations can meet the requirements of special products.
2. By puck-in-puck design customer only need change inside puck when change the product.
3. Provide professional filling solutions for different filling materials.
4. There are many kinds of nozzle design such as internal cutting, external cutting and back suction as well as the technology of rotating body of bottle for filling.
5. We provide leading solution in automation by experienced application in cosmetic and other personnel care industry.

ATPACK Suzhou Machinery Co., Ltd. is specialized in the field of automatic filling and packaging in the personnel care, cosmetic and other similar industry providing standard products, customized products and line solution.

Our products are stable, reliable and flexible with advanced technology. We integrate upstream and downstream resources to help customers improve production efficiency and productivity.

Products are applied to skin care products such as tube, emulsion, lotion, cream, mask and cosmetic / make up such as mascara, lipstick, powder and so on. The company has a high reputation in cosmetics manufacturers and OEM / ODM factories and is a leading company in the automatic filling and packaging industry.
