Personal Care Cosmetic Tube Filler Food Pharmacy Chemical 80 Pieces/Min Stable

Cosmetic Tube Filler

The automatic plastic tube filler and sealer is suitable for filling all kinds of semi-viscous and viscous products into plastic tubes.

It can be used for pharmaceuticals, food products, cosmetics, and chemicals. Some of the products filled with this tube filler are ointments, lotions, caulks, adhesives, cheese spreads, and peanut butter.

Tube feeding, filling, sealing, and finished product output are all conducted by a fully automated control system.

This tube filler/sealers offers quick adjustment, which makes it suitable for using multiple types of soft plastic and/or metal tubes.

Tube Filling Machine​ Working Process:
Manual load tube to container →Automatic tube loading to tube holder → De-dusting →Positioning →Filling →Melting →Tube Sealing & Coding → Cutting →Output

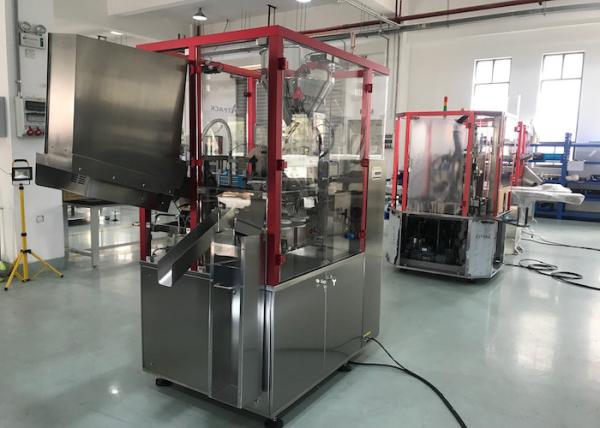

AT80 Automatic Tube Filling and Sealing Machine is a high technology machine model, design and used for filling plastic or aluminum tubes with creams, paste, gels or other similar viscous fluid, then sealing the tubes with special Hot Gun System, other process including tube feeding, photoelectric mark track, date coding, batch number coding, tube trimming and output are all fully automatic.

Tube Filling Machine Advantages:

· AT80 tube filling and sealing machine use cam drive as driving system. The cam process with 38 RMOAL treatment, make it solid and durable to ensure long life driving

· Use Hot Gun Heating System, patent design, the sealing is stronger, faster, more even than regular heating tube system

· Use continuously Variable Transmission Inverter to ensure the high output capacity with stable performance

· Use full closed bearing system for mechanical arm, use linear bearing for other slide shafts, to ensure oiless operation, keep the product high standard

· Two individual fluid cutting off system on the filling head station, especially add an extra air blow off system on the filling head station, ensure the machine clean operation even with high viscous fluid

· Add a bearing in the tube feeding station, make sure the feeding process smooth.

· Use cylinder to push the tubes down to the bottom, ensure they are in even position, reduce the failure rate

· Use a pulse system for photoelectric marking, improve the stability

· Intelligent failure rejecting system, it will kick out the empty tube

Tube Filling Machine​ Applications:

Competitive Advantage:

Stable, reliable and high quality machine which need less service. Very short product and size change over with precise filling accuracy. Easy operate with Siemens HMI providing English, Chinese or other language that is on request. Designed to fill and close all type of tubes available on the market with perfect respect for the product.

Tube Filling Machine Details:

ATPACK Suzhou Machinery Co., Ltd. is specialized in the field of automatic filling and packaging in the personnel care, cosmetic and other similar industry providing standard products, customized products and line solution.

Our products are stable, reliable and flexible with advanced technology. We integrate upstream and downstream resources to help customers improve production efficiency and productivity.

Products are applied to skin care products such as tube, emulsion, lotion, cream, mask and cosmetic / make up such as mascara, lipstick, powder and so on. The company has a high reputation in cosmetics manufacturers and OEM / ODM factories and is a leading company in the automatic filling and packaging industry.
